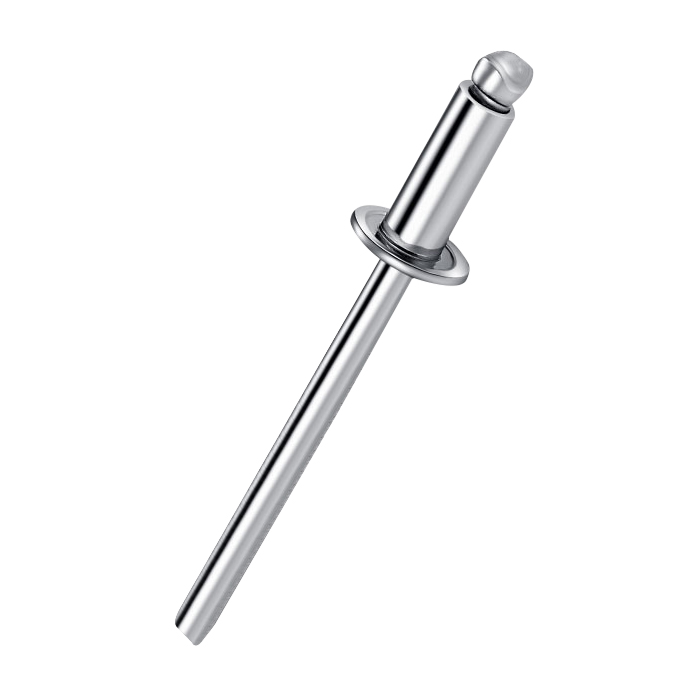

| Name: | Aluminum 5050(5052)/Steel Open End Blind Rivet |
PRODUCT DESCRIPTION

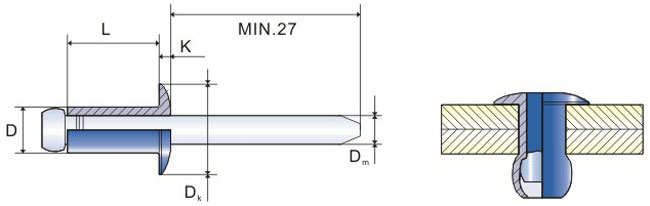

Aluminum(5050/5052)/Steel Dome Head BlindRivet-AS1

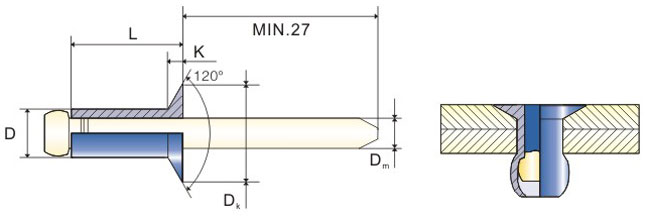

Aluminum(5050/5052)/Steel CSK Head BlindRivet-AS1-CSK
Material:Body: Aluminum 5050/5052
Mandrel:Steel
Finish:Body:Polished
Mandrel:Zinc plated
Standard: DIN / GB / JIS / ISO / IFI / BS / ASTM
| D |
Drill NO. &Hole Size |
Grip Range |
L (Max) |
DK |
K Max |
Shear LBS |
Tensile LBS |
||
| INCH |
MM |
INCH |
MM |
||||||
| 3/32" 2.4mm |
#41 2.5-2.6 |
0.020-0.125 |
0.5-3.2 |
0.250 |
6.4 |
0.188" 4.8 |
0.032" 0.81 |
70 310N |
80 360N |
| 0.126-0.250 |
3.2-6.4 |
0.375 |
9.5 |
||||||
| 0.251-0.375 |
6.4-9.5 |
0.500 |
12.7 |
||||||
| 1/8" 3.2mm |
#30 3.3-3.4 |
0.020-0.062 |
0.5-1.6 |
0.212 |
5.4 |
0.250" 6.4 |
0.040" 1.02 |
120 530N |
150 670N |
| 0.063-0.125 |
1.6-3.2 |
0.275 |
7.0 |
||||||
| 0.126-0.187 |
3.2-4.8 |
0.337 |
8.6 |
||||||
| 0.188-0.250 |
4.8-6.4 |
0.400 |
10.2 |
||||||
| 0.251-0.312 |
6.4-7.9 |
0.462 |
11.7 |
||||||
| 0.313-0.375 |
7.9-9.5 |
0.525 |
13.3 |
||||||
| 0.376-0.500 |
9.5-12.7 |
0.650 |
16.5 |
||||||
| 0.501-0.625 |
12.7-15.9 |
0.775 |
19.7 |
||||||
| 5/32" 4.0mm |
#20 4.2-4.2 |
0.020-0.125 |
0.5-3.2 |
0.300 |
7.6 |
0.312" 7.9 |
0.050" 1.27 |
190 850N |
230 1020N |
| 0.126-0.187 |
3.2-4.8 |
0.362 |
9.2 |
||||||
| 0.188-0.250 |
4.8-6.4 |
0.425 |
10.8 |
||||||
| 0.252-0.375 |
6.4-9.5 |
0.550 |
14.0 |
||||||
| 0.376-0.500 |
9.5-12.7 |
0.675 |
17.1 |
||||||
| 0.502-0.625 |
12.7-15.9 |
0.800 |
20.3 |
||||||
| 0.876-1.000 |
22.2-25.4 |
1.175 |
29.8 |
||||||
| 3/16" 4.8mm |
#11 4.9-5.0 |
0.020-0.125 |
0.5-3.2 |
0.325 |
8.3 |
0.375" 9.5 |
0.060" 1.52 |
260 1160N |
320 1430N |
| 0.126-0.187 |
3.2-4.8 |
0.387 |
9.8 |
||||||
| 0.188-0.250 |
4.8-6.4 |
0.450 |
11.4 |
||||||
| 0.251-0.375 |
6.4-9.5 |
0.575 |
14.6 |
||||||
| 0.376-0.500 |
9.5-12.7 |
0.700 |
17.8 |
||||||
| 0.501-0.625 |
12.7-15.9 |
0.825 |
21.0 |
||||||
| 0.626-0.750 |
15.9-19.1 |
0.950 |
24.1 |
||||||
| 0.751-0.875 |
19.2-22.2 |
1.075 |
27.3 |
||||||
| 0.876-1.000 |
22.2-25.4 |
1.200 |
30.5 |
||||||
| 1.001-1.125 |
25.4-29.6 |
1.325 |
33.7 |
||||||
| 1.251-1.375 |
31.8-34-.9 |
1.575 |
40.0 |
||||||
| 1/4" 6.4mm |
F 6.5-6.6 |
0.020-0.125 |
0.5-3.2 |
0.375 |
9.5 |
0.500" 12.7 |
0.080" 2.03 |
460 2050N |
560 2500N |
| 0.126-0.250 |
3.2-6.4 |
0.500 |
12.7 |
||||||
| 0.251-0.375 |
6.4-9.5 |
0.625 |
15.9 |
||||||
| 0.376-0.500 |
9.5-12.7 |
0.750 |
19.1 |
||||||
| 0.501-0.625 |
12.7-15.9 |
0.875 |
22.2 |
||||||
| 0.626-0.750 |
15.9-19.1 |
1.000 |
25.4 |
||||||
| 0.751-0.875 |
19.2-22.2 |
1.125 |
28.6 |
||||||
| 0.876-1.000 |
22.2-25.4 |
1.250 |
31.8 |
||||||
| 1.001-1.125 |
25.4-28.6 |
1.375 |
34.9 |
||||||
