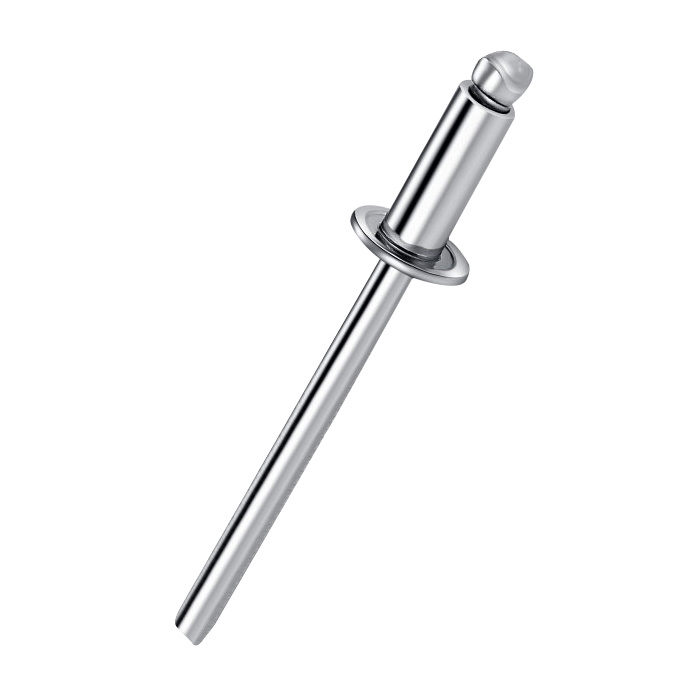

Name:	Aluminum(5056)/Stainless Steel Blind Rivet

PRODUCT DESCRIPTION

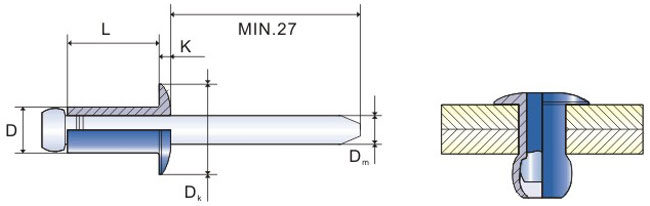

Aluminum(5056)/Stainless Steel Dome Head Blind Rivet-ASTS

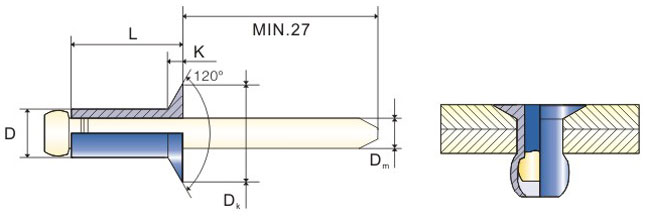

Aluminum(5056)/Stainless Steel CSK Head Blind Rivet-ASTS-CSK

Material:Body: Aluminum 5056

Mandrel:Stainless Steel

Finish:Body:Polished

Mandrel: Polished

Standard: DIN / GB / JIS / ISO / IFI / BS / ASTM

D	Drill NO. &Hole Size	Grip Range		L(Max)		D_K.	K Max	Shear LBS	Tensile LBS
D	Drill NO. &Hole Size	INCH	MM	INCH	MM	D_K.	K Max	Shear LBS	Tensile LBS
1/8" 3.2 mm	30 3.3-3.4	0.020-0.062	0.5-1.6	0.212	5.4	0.250" 6.4	0.040" 1.02	170 760 N	220 980 N
		0.063-0.125	1.6-3.2	0.275	7.0
		0.126-0.187	3.2-4.8	0.337	8.6
		0.188-0.250	4.8-6.4	0.400	10.2
		0.251-0.312	6.4-7.9	0.462	11.7
		0.313-0.375	7.9-9.5	0.525	13.3
		0.376-0.500	9.5-12.7	0.650	16.5
		0.501-0.625	12.7-15.9	0.775	19.7
5/32" 4.0 mm	20 4.1-4.2	0.020-0.125	0.5-3.2	0.300	7.6	0.312" 7.9	0.050" 1.27	260 1160 N	350 1560 N
		0.126-0.187	3.2-4.8	0.362	9.2
		0.188-0.250	4.8-6.4	0.425	10.8
		0.251-0.375	6.4-9.5	0.550	14.0
		0.376-0.500	9.5-12.7	0.675	17.1
		0.501-0.625	12.7-15.9	0.800	20.3
3/16" 4.8 mm	11 4.9-5.0	0.020-0.125	0.5-3.2	0.325	8.3	0.375" 9.5	0.060" 1.52	380 1700 N	500 2230 N
		0.126-0.187	3.2-4.8	0.387	9.8
		0.188-0.250	4.8-6.4	0.450	11.4
		0.251-0.375	6.4-9.5	0.575	14.6
		0.376-0.500	9.5-12.7	0.700	17.8
		0.501-0.625	12.7-15.9	0.825	21.0
		0.626-0.750	15.9-19.1	0.950	24.1
		0.751-0.875	19.1-22.2	1.075	27.3
		0.876-1.000	22.2-25.4	1.200	30.5
		1.001-1.125	25.4-28.6	1.325	33.7
1/4" 6.4mm	F 6.5-6.6	0.020-0.125	0.5-3.2	0.375	9.5	0.500" 12.7	0.080" 2.03	700 3120N	920 4100N
		0.126-0.250	3.2-6.4	0.500	12.7
		0.251-0.375	6.4-9.5	0.625	15.9
		0.376-0.500	9.5-12.7	0.750	19.1
		0.501-0.625	12.7-15.9	0.875	22.2
		0.626-0.750	15.9-19.1	1.000	25.4
		0.751-0.875	19.1-22.2	1.125	28.6
		0.876-1.000	22.2-25.4	1.250	31.8
		1.001-1.125	25.4-28.6	1.375	34.9
		1.126-1.250	28.6-31.8	1.500	38.1
