  • MS843-4

Name:MS843-4

PRODUCT DESCRIPTION

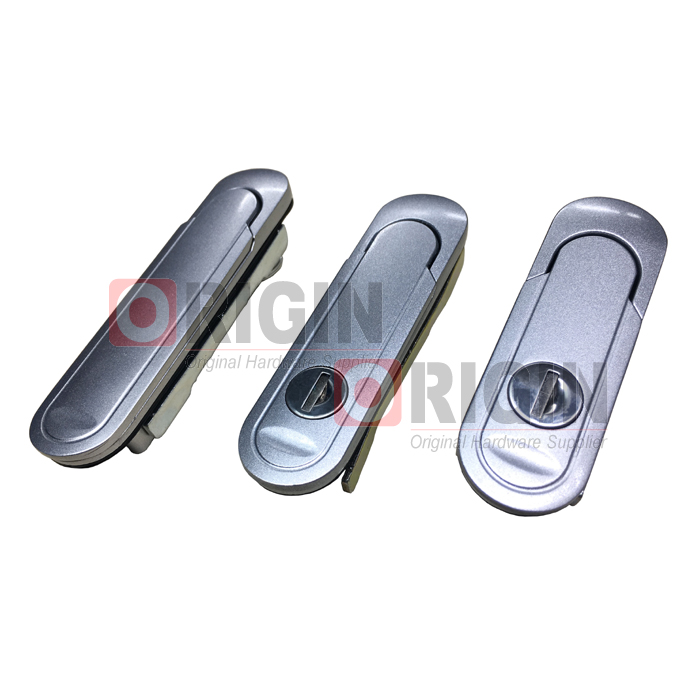

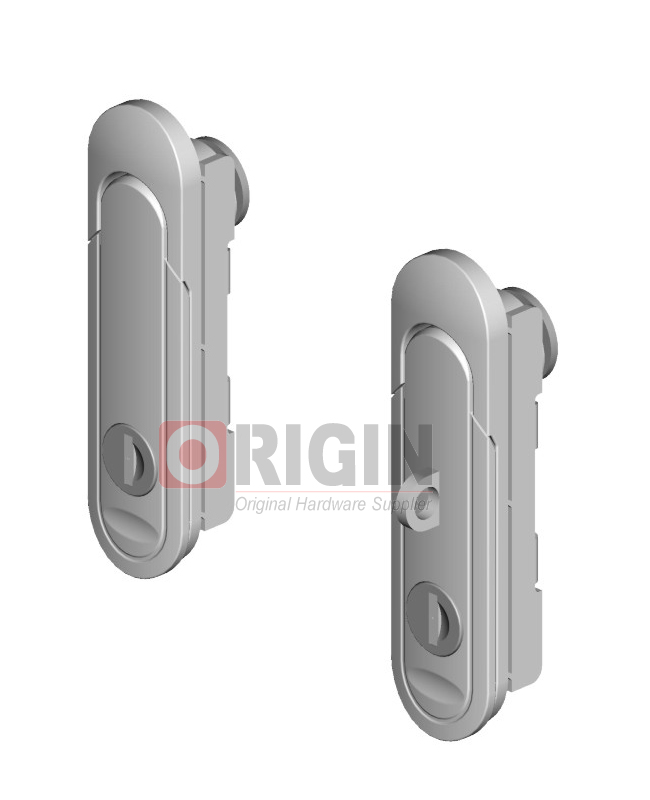

MS843 Swing Handle Zinc Alloy Cabinet Plane Lock

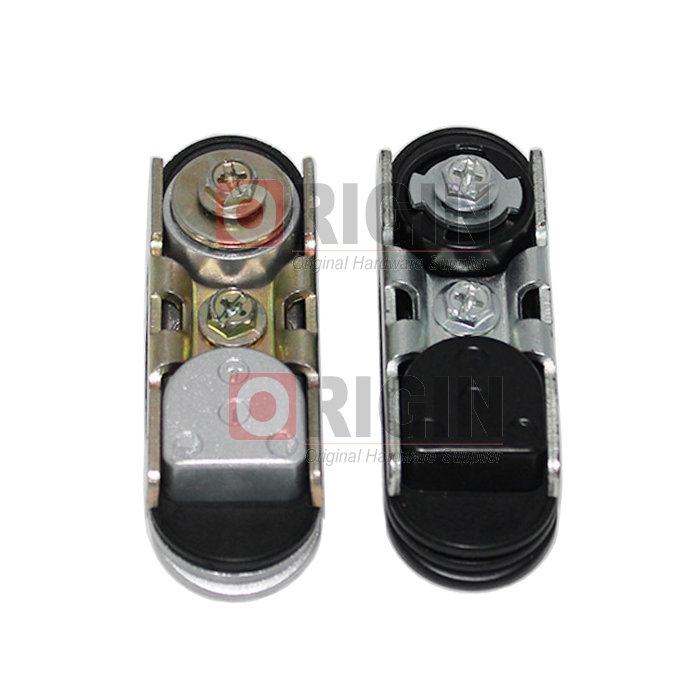

1) Material: Zinc Alloy die cast housing and cylinder.White zinc plated steel support and cam

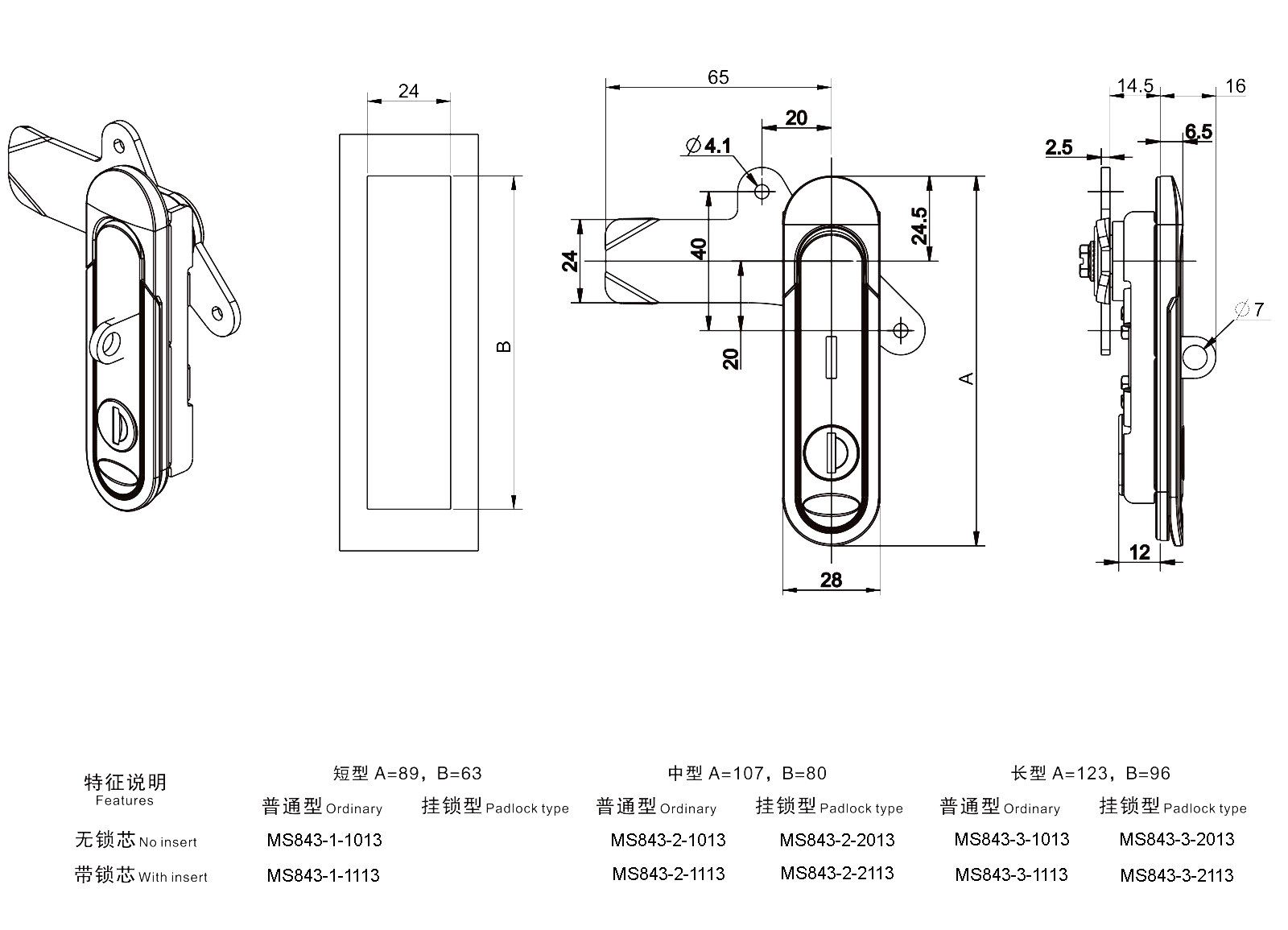

2) Size:As the drawing.

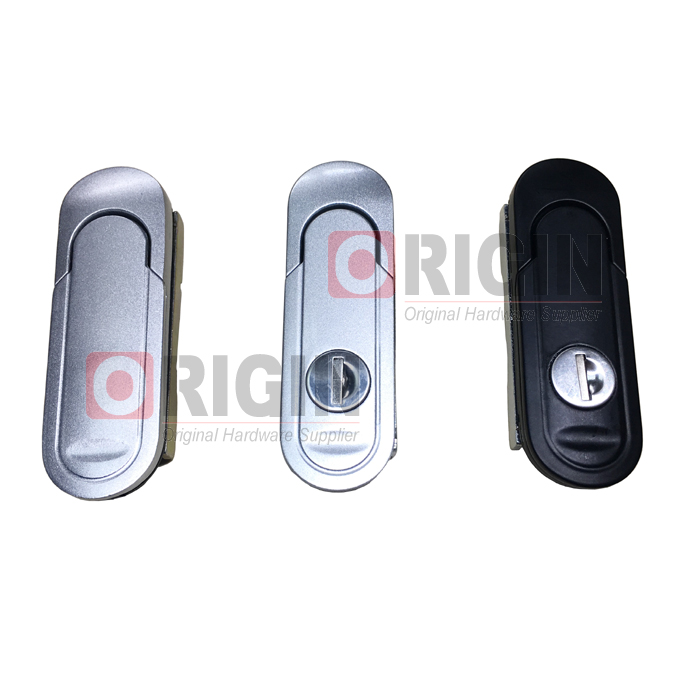

3) Finish: Chrome plating/Nickle plating/ Black powder coated.

4) Panel thickness:1-5mm

5) Application:  Quick-open,easy assembling.One-point locking or three-point locking function will be achieved with different cam mounted on.

6) keyed alike(KA) or Keyed different(KD) are available.

7) Usage: Railway, automobile,machinery and equipment, industrial,electrical appliances.

8) Packing: 1 lock in a polybag, 2polybags in an inner box, 25 boxes in an export carton.
