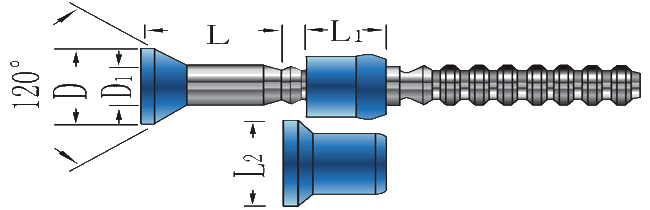

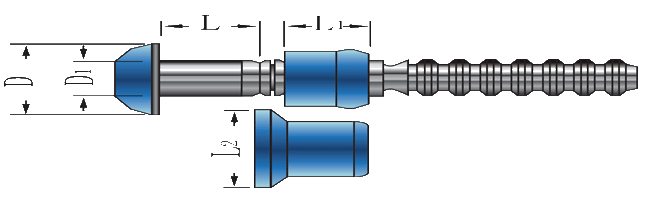

| Name: | Aluminum/Aluminum Lock Bolt(Hucklok) Rivet |
PRODUCT DESCRIPTION
Aluminum/Aluminum
Lock Bolt
Material:
Lockbolt:Aluminum
Collar:Aluminum
Finish:
Lockbolt:Polished
Collar: Polished
| D1 |
D ±0.65 |
D L±0.5 |
Grip Rang |
Drill |
L1 |
L2 |
|
| MIN |
MAX |
||||||
| Φ5.0 +0.06 -0.10 |
Φ9.5 |
4 |
3.5 |
4.5 |
Φ5.1 |
6.0 |
Φ9.5 |
| 6 |
5.5 |
6.5 |
|||||
| 8 |
7.5 |
8.5 |
|||||
| 10 |
9.5 |
10.5 |
|||||
| 12 |
11.5 |
12.5 |
|||||
| 14 |
13.5 |
14.5 |
|||||
| 16 |
15.5 |
16.5 |
|||||
| 18 |
17.5 |
18.5 |
|||||
| Φ6.4 +0.18 -0.10
|
Φ12.5 |
4 |
4.5 |
4.5 |
Φ6.7 |
8.0 |
Φ12.6 |
| 6 |
5.5 |
6.5 |
|||||
| 8 |
7.5 |
8.5 |
|||||
| 10 |
9.5 |
10.5 |
|||||
| 12 |
11.5 |
12.5 |
|||||
| 14 |
13.5 |
14.5 |
|||||
| 16 |
15.5 |
16.5 |
|||||
| 18 |
17.5 |
18.5 |
|||||
| 20 |
19.5 |
20.5 |
|||||
| 22 |
21.5 |
22.5 |
|||||
| 24 |
23.5 |
24.5 |
|||||
| 26 |
25.5 |
26.5 |
|||||
| Φ8.0 +0.20 -0.02 |
Φ15.8 |
6 |
5.5 |
6.5 |
Φ8.4 |
9.4 |
Φ15.9 |
| 8 |
7.5 |
8.5 |
|||||
| 10 |
9.5 |
10.5 |
|||||
| 12 |
11.5 |
12.5 |
|||||
| 14 |
13.5 |
14.5 |
|||||
| 16 |
15.5 |
16.5 |
|||||
| 18 |
17.5 |
18.5 |
|||||
| 20 |
19.5 |
20.5 |
|||||
| Φ10.0 +0.35 -0.15 |
Φ19.0 |
6 |
5.5 |
6.5 |
Φ10.5 |
11.4 |
Φ19.0 |
| 8 |
7.5 |
8.5 |
|||||
| 10 |
9.5 |
10.5 |
|||||
| 12 |
11.5 |
12.5 |
|||||
| 14 |
13.5 |
14.5 |
|||||
| 16 |
15.5 |
16.5 |
|||||
| 18 |
17.5 |
18.5 |
|||||
| 20 |
19.5 |
20. |
|||||
