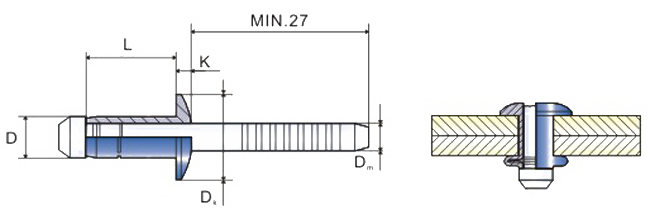

Size

Drill

L

Grip range

D_K

K

D_m

Shear

Tensile

max

max

max

max

KN

KN

3.2
(1/8")

3.3-3.4

8.7

1.0-3.0

6.8

1.4

2.1

1.2

1.3

11.3

3.0-5.0

6.8

1.4

2.1

1.7

1.3

13.6

5.0-7.0

6.8

1.4

2.1

2.5

1.3

4.0
(5/32")

4.1-43

10.1

1.0-3.0

8.0

1.5

2.6

2.4

2.8

12.1

3.0-5.0

8.0

1.5

2.6

3.5

2.8

15.1

5.0-7.0

8.0

1.5

2.6

4.1

2.8

4.8
(3/16")

4.9-5.1

12.1

1.5-3.5

9.6

1.5

3.1

3.6

3.8

14.6

3.5-6.0

9.6

1.5

3.1

4.2

3.8

17.6

6.0-8.5

9.6

1.5

3.1

5.6

3.8

6.0

6.1-6.3

14.2

1.5-4.0

12.3

2.1

4.0

4.2

5.4

17.2

3.0-6.0

12.3

2.1

4.0

5.4

5.4

20.2

6.0-9.0

12.3

2.1

4.0

8.5

5.4

23.2

9.0-12.0

12.3

2.1

4.0

8.5

5.4
