| Name: | Aluminum(5052)/Steel Multi-grip Blind Rivet |
PRODUCT DESCRIPTION

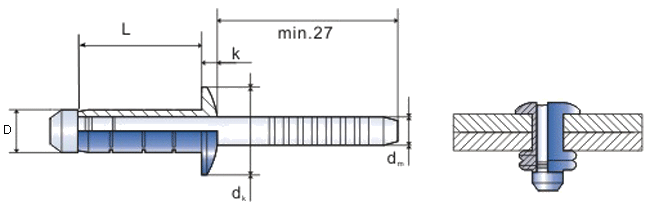

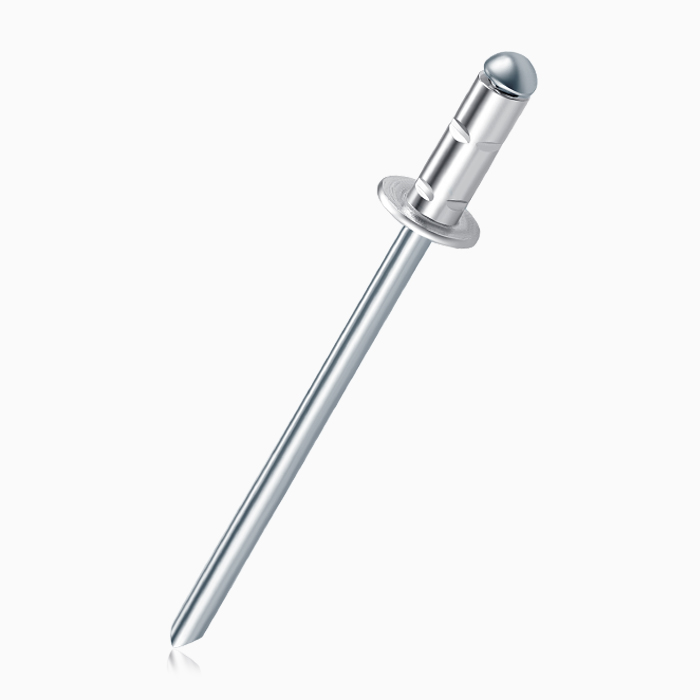

Aluminum(5052)/Steel Dome HEAD
Multi-grip Blind Rivet-ASMG

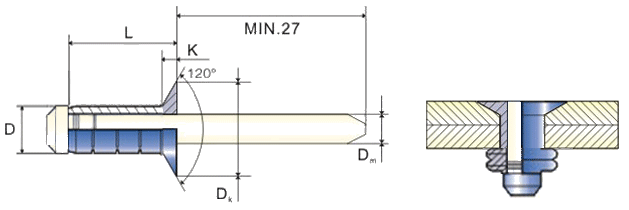

Aluminum(5052)/Steel CSK HEAD Multi-grip
Blind Rivet-ASMG-CSK
Material:Body: Aluminum 5052
Mandrel:Steel
Finish:Body:Polished
Mandrel: Zinc Plated
Standard: DIN / GB / JIS / ISO / IFI / BS / ASTM
AL/STAINLESS STEEL,STEEL/STEEL,STAINLESS STEEL/STAINLESS STEEL ARE ASLO AVAILABE.
| D |
Drill NO. &Hole Size |
Grip Range |
L (Max) |
DK |
K |
Shear |
Tensile |
||
| INCH |
MM |
INCH |
MM |
||||||
| 1/8" |
#30 |
0.031-0.134 |
0.8-3.4 |
0.283 |
7.2 |
0.252" |
0.051" |
135 |
202 |
| 0.031-0.187 |
0.8-4.8 |
0.331 |
8.4 |
||||||
| 0.046-0.250 |
1.2-6.4 |
0.390 |
9.9 |
||||||
| 0.156-0.312 |
4.0-7.9 |
0.453 |
11.5 |
||||||
| 0.216-0.375 |
5.5-9.5 |
0.516 |
13.1 |
||||||
| 0.250-0.437 |
6.4-11.1 |
0.610 |
15.5 |
||||||
| 5/32" |
#20 |
0.020-0.125 |
0.5-3.2 |
0.283 |
7.2 |
0.312" |
0.063" |
213 |
337 |
| 0.046-0.250 |
1.2-6.4 |
0.390 |
9.9 |
||||||
| 0.125-0.312 |
3.2-7.9 |
0.453 |
11.5 |
||||||
| 0.156-0.375 |
4.0-9.5 |
0.516 |
13.1 |
||||||
| 0.250-0.437 |
6.4-11.1 |
0.610 |
15.5 |
||||||
| 0.250-0.500 |
6.4-12.7 |
0.681 |
17.3 |
||||||
| 3/16" |
#11 |
0.062-0.250 |
1.6-6.4 |
0.421 |
10.7 |
0.386" |
0.071" |
296 |
450 |
| 0.079-0.315 |
2.0-8.0 |
0.492 |
12.5 |
||||||
| 0.125-0.375 |
3.2-9.5 |
0.587 |
14.9 |
||||||
| 0.187-0.437 |
4.8-11.1 |
0.610 |
15.5 |
||||||
| 0.250-0.500 |
6.4-12.7 |
0.681 |
17.3 |
||||||
| 0.345-0.590 |
9.0-15.0 |
0.783 |
19.9 |
||||||
| 0.500-0.781 |
12.7-19.8 |
0.992 |
25.2 |
||||||
