  • Steel/Steel Blind Rivet

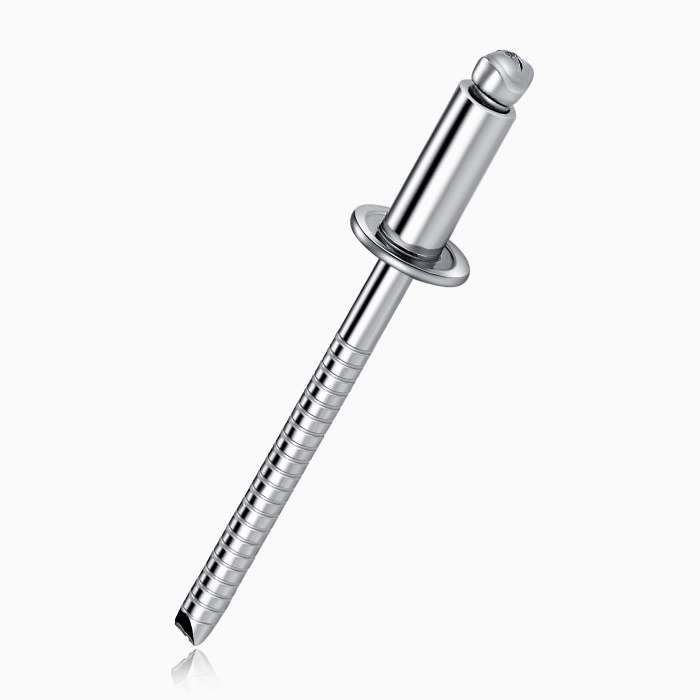

Name:Steel/Steel Blind Rivet

PRODUCT DESCRIPTION

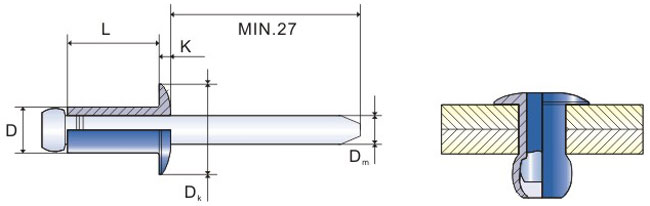

Steel/Steel Dome Head Blind Rivet-SS

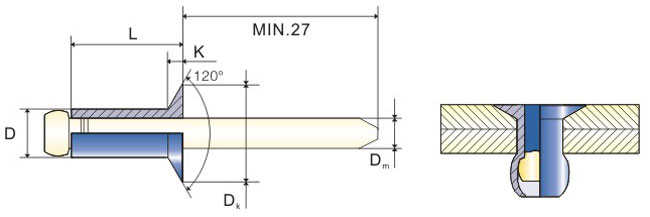

Steel/Steel CSK Head Blind Rivet-SS-CSK

Material:Body: Steel

 Mandrel:Steel

Finish:Body:Zinc Plated

Mandrel: Zinc Plated

Standard: DIN / GB / JIS / ISO / IFI / BS / ASTM





D

Drill NO.
&Hole Size

Grip Range

L(Max)

DK

K
Max.

Shear
LBS

Tensile
LBS

INCH

MM

INCH

MM

3/32"
2.4mm

#41
2.5-2.6

0.020-0.125

0.5-3.2

0.250

6.4

0.188"
4.8

0.032"
0.81

130
580N

170
760N

0.126-0.250

3.2-6.4

0.375

9.5

0.251-0.375

6.4-9.5

0.500

12.7

1/8"
3.2mm

#30
3.3-3.4

0.020-0.062

0.5-1.6

0.212

5.4

0.250"
6.4

0.040"
1.02

260
1160N

310
1380N

0.063-0.125

1.6-3.2

0.275

7.0

0.126-0.187

3.2-4.8

0.337

8.6

0.188-0.250

4.8-6.4

0.400

10.2

0.251-0.312

6.4-7.9

0.462

11.7

0.313-0.375

7.9-9.5

0.525

13.3

0.376-0.500

9.5-12.7

0.650

16.5

0.501-0.625

12.7-15.9

0.775

19.7

5/32"
4.0mm

#20
4.1-4.2

0.020-0.125

0.5-3.2

0.300

7.6

0.312"
7.9

0.050"
1.27

370
1650N

470
2100N

0.126-0.187

3.2-4.8

0.362

9.2

0.188-0.250

4.8-6.4

0.425

10.8

0.251-0.375

6.4-9.5

0.550

14.0

0.376-0.500

9.5-12.7

0.675

17.1

0.501-0.625

12.7-15.9

0.800

20.3

0.876-1.000

22.2-25.4

1.175

29.8

3/16"
4.8mm

#11
4.9-5.0

0.020-0.125

0.5-3.2

0.325

8.3

0.375"
9.5

0.060"
1.52

540
2400N

680
3030N

0.126-0.187

3.2-4.8

0.387

9.8

0.188-0.250

4.8-6.4

0.450

11.4

0.251-0.375

6.4-9.5

0.575

14.6

0.376-0.500

9.5-12.7

0.700

17.8

0.501-0.625

12.7-15.9

0.825

21.0

0.626-.0750

15.9-19.1

0.950

24.1

0.751-0.875

19.1-22.2

1.075

27.3

0.876-1.000

22.2-25.4

1.200

30.5

1.001-1.125

25.4-28.6

1.325

33.7

1.126-1.250

28.6-31.8

1.450

36.8

1/4"
6.4mm

F
6.5-6.6

0.020-0.125

0.5-3.2

0.375

9.5

0.500"
12.7

0.080"
2.03

1000
4450N

1240
5520N

0.126-0.250

3.2-6.4

0.500

12.7

0.251-0.375

6.4-9.5

0.625

15.9

0.376-0.500

9.5-12.7

0.750

19.1

0.501-0.625

12.7-15.9

0.875

22.2

0.626-0.750

15.9-19.1

1.000

25.4

0.751-0.875

19.1-22.2

1.125

28.6

0.876-1.000

22.2-25.4

1.250

31.8

1.001-1.125

25.4-28.6

1.375

34.9
