| Name: | Aluminum/Aluminum Hem-Fix (Hemlok) Blind Rivet |
PRODUCT DESCRIPTION
Aluminum/Aluminum

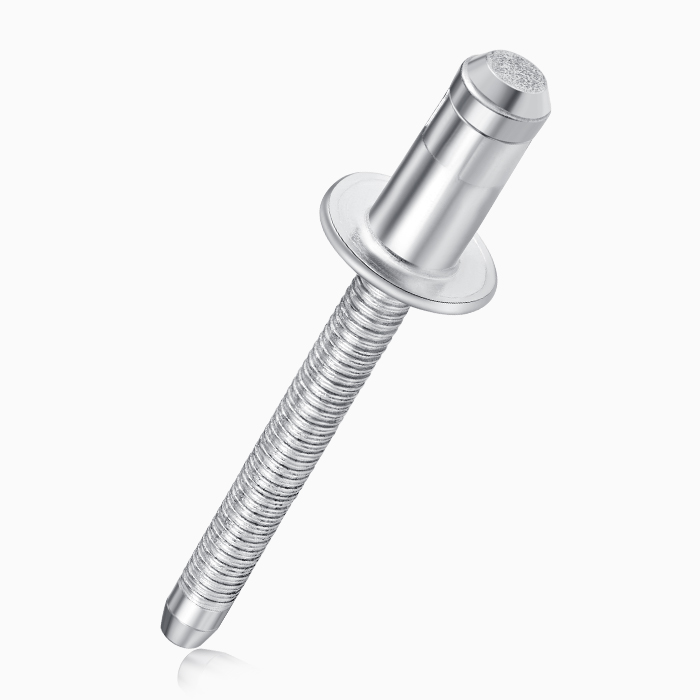

Hem-Fix (Hemlok) Blind Rivet—AAHF
Aluminum/Aluminum
Hem-Fix (Hemlok) CSK Head Blind Rivet—AAHF-CSK
Material:
Body:Aluminum
Mandrel:Aluminum
Finish:
Body:Polished
Mandrel:Polished
Size Drill L Grip Range DK K Dm Shear Tensile max max max KN KN 4.8 4.9-5.1 9 1.50-3.50 10.20 2.50 3.1 1.7 1.6 11.5 3.50-6.00 2.5 1.6 14 6.00-8.50 2.5 1.6 16.5 8.50-11.00 2.5 1.6 19 11.00-13.50 2.5 1.6 22.5 13.00-15.00 2.5 1.6 6.4 (1/4 ") 6.7-6.9 9 1.50-3.50 13.4 2.7 3.9 4.2 3.4 10.5 2.80-4.80 4.2 3.4 11.5 3.35-5.35 4.5 3.4 12.5 4.80-6.80 4.5 3.4 14.5 6.80-8.80 4.9 3.4 15.5 7.50-9.50 13.4 2.7 3.9 4.9 3.4 16.5 8.80-10.80 13.4 2.7 3.9 4.9 3.4 18.5 10.80-12.80 13.4 2.7 3.9 4.9 3.4
(3/16")
