copper blind rivet,DIN7337 blind rivet,dome head blind rivet-Product Center-Origin Hardware-

Our products

  • Copper/Steel(Copper/Stainless Steel)  Blind Rivet

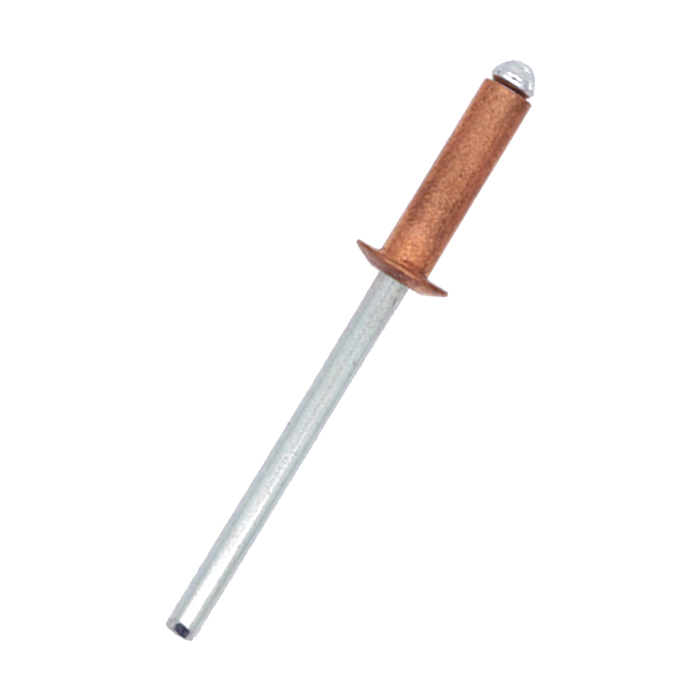

Name:Copper/Steel(Copper/Stainless Steel) Blind Rivet

PRODUCT DESCRIPTION

Copper/Steel(Copper/Stainless Steel)  Dome Head Blind Rivet-CS(CST)

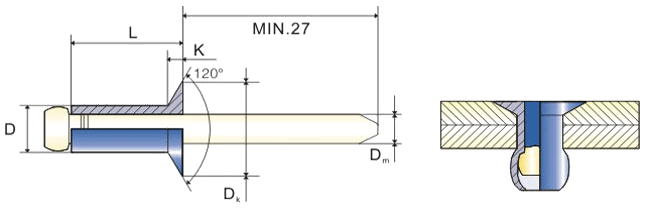

Copper/Steel(Copper/Stainless Steel)  CSK Head Blind Rivet-CS-CSK(CST-CSK)

Material:Body:Copper

Mandrel: Steel/Stainless Steel

Finish:Body:Polished

Mandrel: Zinc Plated/Polished

Standard: DIN / GB / JIS / ISO / IFI / BS / ASTM




D

Drill NO. &Hole Size

Grip Range

L(Max)

DK

K
Max

Shear
LBS

Tensile
LBS

INCH

MM

INCH

MM

1/8"
3.2mm

#30
3.3-3.4

0.020-0.062

0.5-1.6

0.212

5.4

0.250"
6.4

0.040"
1.02

157
700N

180
800N

0.063-0.125

1.6-3.2

0.275

7.0

0.126-0.187

3.2-4.8

0.337

8.6

0.188-0.250

4.8-6.4

0.400

10.2

0.251-0.312

6.4-7.9

0.462

11.7

0.313-0.375

7.9-9.5

0.525

13.3

0.376-0.500

9.5-12.7

0.650

16.5

5/32"
4.0mm

#20
4.1-4.2

0.020-0.125

0.5-3.2

0.300

7.6

0.312"
7.9

0.050"
1.27

225

1000N

337

1500N

0.126-0.187

3.2-4.8

0.362

9.2

0.188-0.250

4.8-6.4

0.425

10.8

0.251-0.375

6.4-9.5

0.550

14.0

0.376-0.500

9.5-12.7

0.675

17.1

0.501-0.625

12.7-15.9

0.800

20.3

3/16"
4.8mm

#11
4.9-5.0

0.20-0.125

0.5-3.2

0.325

8.3

0.375"
9.5

0.060"
1.52

337
1500N

450
2000N

0.126-0.187

3.2-4.8

0.387

9.8

0.188-0.250

4.8-6.4

0.450

11.4

0.251-0.375

6.4-9.5

0.575

14.6

0.376-0.500

9.5-12.7

0.700

17.8

0.501-0.625

12.7-15.9

0.825

21.0

0.626-0.750

15.9-19.1

0.950

24.1

0.751-0.875

19.1-22.2

1.075

27.3

0.876-1.000

22.2-25.4

1.200

30.5

1.001-1.125

25.4-28.6

1.325

33.7
